Simple Example

Elementor Pro Advanced

To demonstrate how easy it is to create new form actions, we're going to create an addon which will ping an external server.

Folder Structure

The addon will have two files. One file for the new form action and a main file to register the action and handle all the other stuff.

elementor-forms-ping-action/
|
├─ form-actions/
|  └─ ping.php
|
└─ elementor-forms-ping-action.php

Plugin Files

elementor-forms-ping-action.php

<?php
/**
 * Plugin Name: Elementor Forms Ping Action
 * Description: Custom addon which will ping an external server.
 * Plugin URI:  https://elementor.com/
 * Version:     1.0.0
 * Author:      Elementor Developer
 * Author URI:  https://developers.elementor.com/
 * Text Domain: elementor-forms-ping-action
 *
 * Requires Plugins: elementor
 * Elementor tested up to: 3.25.0
 * Elementor Pro tested up to: 3.25.0
 */

if ( ! defined( 'ABSPATH' ) ) {
	exit; // Exit if accessed directly.
}

/**
 * Add new form action after form submission.
 *
 * @since 1.0.0
 * @param ElementorPro\Modules\Forms\Registrars\Form_Actions_Registrar $form_actions_registrar
 * @return void
 */
function add_new_ping_action( $form_actions_registrar ) {

	include_once( __DIR__ .  '/form-actions/ping.php' );

	$form_actions_registrar->register( new \Ping_Action_After_Submit() );

}
add_action( 'elementor_pro/forms/actions/register', 'add_new_ping_action' );

form-actions/ping.php

<?php
if ( ! defined( 'ABSPATH' ) ) {
	exit; // Exit if accessed directly.
}

/**
 * Elementor form ping action.
 *
 * Custom Elementor form action which will ping an external server.
 *
 * @since 1.0.0
 */
class Ping_Action_After_Submit extends \ElementorPro\Modules\Forms\Classes\Action_Base {

	/**
	 * Get action name.
	 *
	 * Retrieve ping action name.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string
	 */
	public function get_name(): string {
		return 'ping';
	}

	/**
	 * Get action label.
	 *
	 * Retrieve ping action label.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string
	 */
	public function get_label(): string {
		return esc_html__( 'Ping', 'elementor-forms-ping-action' );
	}

	/**
	 * Run action.
	 *
	 * Ping an external server after form submission.
	 *
	 * @since 1.0.0
	 * @access public
	 * @param \ElementorPro\Modules\Forms\Classes\Form_Record  $record
	 * @param \ElementorPro\Modules\Forms\Classes\Ajax_Handler $ajax_handler
	 */
	public function run( $record, $ajax_handler ): void {

		wp_remote_post(
			'https://api.example.com/',
			[
				'method' => 'GET',
				'headers' => [
					'Content-Type' => 'application/json',
				],
				'body' => wp_json_encode([
					'site' => get_home_url(),
					'action' => 'Form submitted',
				]),
				'httpversion' => '1.0',
				'timeout' => 60,
			]
		);

	}

	/**
	 * Register action controls.
	 *
	 * Ping action has no input fields to the form widget.
	 *
	 * @since 1.0.0
	 * @access public
	 * @param \Elementor\Widget_Base $widget
	 */
	public function register_settings_section( $widget ): void {}

	/**
	 * On export.
	 *
	 * Ping action has no fields to clear when exporting.
	 *
	 * @since 1.0.0
	 * @access public
	 * @param array $element
	 */
	public function on_export( $element ): array {}

}

The Result

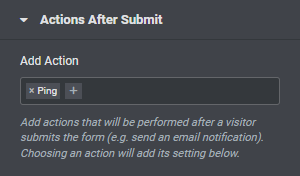

The new "Ping" action inside the "Action After Submit" section:
