Advanced Example

Elementor Core Intermediate

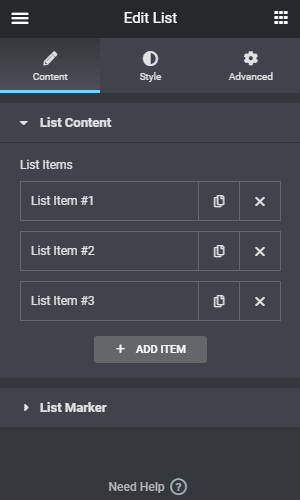

For a more advanced example we will create a widget with a repeater field, to allow the user to generate a list with items. It will also have a conditional field display when choosing "other" marker type, to display a new control that let's the user enter a custom marker.

Folder Structure

The addon will have two files. One file for the widget and a main file to register the widget.

elementor-list-widget/
|
├─ widgets/
|  └─ list-widget.php
|
└─ elementor-list-widget.php

Plugin Files

elementor-list-widget.php

php

<?php
/**
 * Plugin Name: Elementor List Widget
 * Description: List widget for Elementor.
 * Plugin URI:  https://elementor.com/
 * Version:     1.0.0
 * Author:      Elementor Developer
 * Author URI:  https://developers.elementor.com/
 * Text Domain: elementor-list-widget
 *
 * Requires Plugins: elementor
 * Elementor tested up to: 3.25.0
 * Elementor Pro tested up to: 3.25.0
 */

if ( ! defined( 'ABSPATH' ) ) {
	exit; // Exit if accessed directly.
}

/**
 * Register List Widget.
 *
 * Include widget file and register widget class.
 *
 * @since 1.0.0
 * @param \Elementor\Widgets_Manager $widgets_manager Elementor widgets manager.
 * @return void
 */
function register_list_widget( $widgets_manager ) {

	require_once( __DIR__ . '/widgets/list-widget.php' );

	$widgets_manager->register( new \Elementor_List_Widget() );

}
add_action( 'elementor/widgets/register', 'register_list_widget' );

widgets/list-widget.php

php

<?php
if ( ! defined( 'ABSPATH' ) ) {
	exit; // Exit if accessed directly.
}

/**
 * Elementor List Widget.
 *
 * Elementor widget that inserts an embbedable content into the page, from any given URL.
 *
 * @since 1.0.0
 */
class Elementor_List_Widget extends \Elementor\Widget_Base {

	/**
	 * Get widget name.
	 *
	 * Retrieve list widget name.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string Widget name.
	 */
	public function get_name(): string {
		return 'list';
	}

	/**
	 * Get widget title.
	 *
	 * Retrieve list widget title.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string Widget title.
	 */
	public function get_title(): string {
		return esc_html__( 'List', 'elementor-list-widget' );
	}

	/**
	 * Get widget icon.
	 *
	 * Retrieve list widget icon.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string Widget icon.
	 */
	public function get_icon(): string {
		return 'eicon-bullet-list';
	}

	/**
	 * Get widget categories.
	 *
	 * Retrieve the list of categories the list widget belongs to.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return array Widget categories.
	 */
	public function get_categories(): array {
		return [ 'general' ];
	}

	/**
	 * Get widget keywords.
	 *
	 * Retrieve the list of keywords the list widget belongs to.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return array Widget keywords.
	 */
	public function get_keywords(): array {
		return [ 'list', 'lists', 'ordered', 'unordered' ];
	}

	/**
	 * Get custom help URL.
	 *
	 * Retrieve a URL where the user can get more information about the widget.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return string Widget help URL.
	 */
	public function get_custom_help_url(): string {
		return 'https://developers.elementor.com/docs/widgets/';
	}

	/**
	 * Get widget promotion data.
	 *
	 * Retrieve the widget promotion data.
	 *
	 * @since 1.0.0
	 * @access protected
	 * @return array Widget promotion data.
	 */
	protected function get_upsale_data(): array {
		return [
			'condition' => true,
			'image' => esc_url( ELEMENTOR_ASSETS_URL . 'images/go-pro.svg' ),
			'image_alt' => esc_attr__( 'Upgrade', 'elementor-list-widget' ),
			'title' => esc_html__( 'Promotion heading', 'elementor-list-widget' ),
			'description' => esc_html__( 'Get the premium version of the widget with additional styling capabilities.', 'elementor-list-widget' ),
			'upgrade_url' => esc_url( 'https://example.com/upgrade-to-pro/' ),
			'upgrade_text' => esc_html__( 'Upgrade Now', 'elementor-list-widget' ),
		];
	}

	/**
	 * Whether the widget requires inner wrapper.
	 *
	 * Determine whether to optimize the DOM size.
	 *
	 * @since 1.0.0
	 * @access public
	 * @return bool Whether to optimize the DOM size.
	 */
	public function has_widget_inner_wrapper(): bool {
		return false;
	}

	/**
	 * Whether the element returns dynamic content.
	 *
	 * Determine whether to cache the element output or not.
	 *
	 * @since 1.0.0
	 * @access protected
	 * @return bool Whether to cache the element output.
	 */
	protected function is_dynamic_content(): bool {
		return false;
	}

	/**
	 * Register list widget controls.
	 *
	 * Add input fields to allow the user to customize the widget settings.
	 *
	 * @since 1.0.0
	 * @access protected
	 */
	protected function register_controls(): void {

		$this->start_controls_section(
			'content_section',
			[
				'label' => esc_html__( 'List Content', 'elementor-list-widget' ),
				'tab' => \Elementor\Controls_Manager::TAB_CONTENT,
			]
		);

		/* Start repeater */

		$repeater = new \Elementor\Repeater();

		$repeater->add_control(
			'text',
			[
				'label' => esc_html__( 'Text', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::TEXT,
				'placeholder' => esc_html__( 'List Item', 'elementor-list-widget' ),
				'default' => esc_html__( 'List Item', 'elementor-list-widget' ),
				'label_block' => true,
				'dynamic' => [
					'active' => true,
				],
			]
		);

		$repeater->add_control(
			'link',
			[
				'label' => esc_html__( 'Link', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::URL,
				'dynamic' => [
					'active' => true,
				],
			]
		);

		/* End repeater */

		$this->add_control(
			'list_items',
			[
				'label' => esc_html__( 'List Items', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::REPEATER,
				'fields' => $repeater->get_controls(),           /* Use our repeater */
				'default' => [
					[
						'text' => esc_html__( 'List Item #1', 'elementor-list-widget' ),
						'link' => '',
					],
					[
						'text' => esc_html__( 'List Item #2', 'elementor-list-widget' ),
						'link' => '',
					],
					[
						'text' => esc_html__( 'List Item #3', 'elementor-list-widget' ),
						'link' => '',
					],
				],
				'title_field' => '{{{ text }}}',
			]
		);

		$this->end_controls_section();

		$this->start_controls_section(
			'marker_section',
			[
				'label' => esc_html__( 'List Marker', 'elementor-list-widget' ),
				'tab' => \Elementor\Controls_Manager::TAB_CONTENT,
			]
		);

		$this->add_control(
			'marker_type',
			[
				'label' => esc_html__( 'Marker Type', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::CHOOSE,
				'options' => [
					'ordered' => [
						'title' => esc_html__( 'Ordered List', 'elementor-list-widget' ),
						'icon' => 'eicon-editor-list-ol',
					],
					'unordered' => [
						'title' => esc_html__( 'Unordered List', 'elementor-list-widget' ),
						'icon' => 'eicon-editor-list-ul',
					],
					'other' => [
						'title' => esc_html__( 'Custom List', 'elementor-list-widget' ),
						'icon' => 'eicon-edit',
					],
				],
				'default' => 'ordered',
				'toggle' => false,
			]
		);

		$this->add_control(
			'marker_content',
			[
				'label' => esc_html__( 'Custom Marker', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::TEXT,
				'placeholder' => esc_html__( 'Enter custom marker', 'elementor-list-widget' ),
				'default' => '🧡',
				'condition' => [
					'marker_type[value]' => 'other',
				],
				'selectors' => [
					'{{WRAPPER}} .elementor-list-widget-text::marker' => 'content: "{{VALUE}}";',
				],
			]
		);

		$this->end_controls_section();

		$this->start_controls_section(
			'style_content_section',
			[
				'label' => esc_html__( 'List Style', 'elementor-list-widget' ),
				'tab' => \Elementor\Controls_Manager::TAB_STYLE,
			]
		);

		$this->add_control(
			'title_color',
			[
				'label' => esc_html__( 'Color', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::COLOR,
				'selectors' => [
					'{{WRAPPER}} .elementor-list-widget-text' => 'color: {{VALUE}};',
					'{{WRAPPER}} .elementor-list-widget-text > a' => 'color: {{VALUE}};',
				],
			]
		);

		$this->add_group_control(
			\Elementor\Group_Control_Typography::get_type(),
			[
				'name' => 'icon_typography',
				'selector' => '{{WRAPPER}} .elementor-list-widget-text, {{WRAPPER}} .elementor-list-widget-text > a',
			]
		);

		$this->add_group_control(
			\Elementor\Group_Control_Text_Shadow::get_type(),
			[
				'name' => 'text_shadow',
				'selector' => '{{WRAPPER}} .elementor-list-widget-text',
			]
		);

		$this->end_controls_section();

		$this->start_controls_section(
			'style_marker_section',
			[
				'label' => esc_html__( 'Marker Style', 'elementor-list-widget' ),
				'tab' => \Elementor\Controls_Manager::TAB_STYLE,
			]
		);

		$this->add_control(
			'marker_color',
			[
				'label' => esc_html__( 'Color', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::COLOR,
				'selectors' => [
					'{{WRAPPER}} .elementor-list-widget-text::marker' => 'color: {{VALUE}};',
				],
			]
		);

		$this->add_control(
			'marker_spacing',
			[
				'label' => esc_html__( 'Spacing', 'elementor-list-widget' ),
				'type' => \Elementor\Controls_Manager::SLIDER,
				'size_units' => [ 'px', 'em', 'rem', 'custom' ],
				'range' => [
					'px' => [
						'min' => 0,
						'max' => 100,
					],
					'em' => [
						'min' => 0,
						'max' => 10,
					],
					'rem' => [
						'min' => 0,
						'max' => 10,
					],
				],
				'default' => [
					'unit' => 'px',
					'size' => 40,
				],
				'selectors' => [
					// '{{WRAPPER}} .elementor-list-widget' => 'padding-left: {{SIZE}}{{UNIT}};',
					'{{WRAPPER}} .elementor-list-widget' => 'padding-inline-start: {{SIZE}}{{UNIT}};',
				],
			]
		);

		$this->end_controls_section();

	}

	/**
	 * Render list widget output on the frontend.
	 *
	 * Written in PHP and used to generate the final HTML.
	 *
	 * @since 1.0.0
	 * @access protected
	 */
	protected function render(): void {
		$settings = $this->get_settings_for_display();
		$html_tag = [
			'ordered' => 'ol',
			'unordered' => 'ul',
			'other' => 'ul',
		];
		$this->add_render_attribute( 'list', 'class', 'elementor-list-widget' );
		?>
		<<?php echo $html_tag[ $settings['marker_type'] ]; ?> <?php $this->print_render_attribute_string( 'list' ); ?>>
			<?php
			foreach ( $settings['list_items'] as $index => $item ) {
				$repeater_setting_key = $this->get_repeater_setting_key( 'text', 'list_items', $index );
				$this->add_render_attribute( $repeater_setting_key, 'class', 'elementor-list-widget-text' );
				$this->add_inline_editing_attributes( $repeater_setting_key );
				?>
				<li <?php $this->print_render_attribute_string( $repeater_setting_key ); ?>>
					<?php
					$title = $settings['list_items'][$index]['text'];

					if ( ! empty( $item['link']['url'] ) ) {
						$this->add_link_attributes( "link_{$index}", $item['link'] );
						$linked_title = sprintf( '<a %1$s>%2$s</a>', $this->get_render_attribute_string( "link_{$index}" ), $title );
						echo $linked_title;
					} else {
						echo $title;
					}
					?>
				</li>
				<?php
			}
			?>
		</<?php echo $html_tag[ $settings['marker_type'] ]; ?>>
		<?php
	}

	/**
	 * Render list widget output in the editor.
	 *
	 * Written as a Backbone JavaScript template and used to generate the live preview.
	 *
	 * @since 1.0.0
	 * @access protected
	 */
	protected function content_template(): void {
		?>
		<#
		html_tag = {
			'ordered': 'ol',
			'unordered': 'ul',
			'other': 'ul',
		};
		view.addRenderAttribute( 'list', 'class', 'elementor-list-widget' );
		#>
		<{{{ html_tag[ settings.marker_type ] }}} {{{ view.getRenderAttributeString( 'list' ) }}}>
			<# _.each( settings.list_items, function( item, index ) {
				const repeater_setting_key = view.getRepeaterSettingKey( 'text', 'list_items', index );
				view.addRenderAttribute( repeater_setting_key, 'class', 'elementor-list-widget-text' );
				view.addInlineEditingAttributes( repeater_setting_key );
				#>
				<li {{{ view.getRenderAttributeString( repeater_setting_key ) }}}>
					<# const title = item.text; #>
					<# if ( item.link ) { #>
						<# view.addRenderAttribute( `link_${index}`, item.link ); #>
						<a href="{{ item.link.url }}" {{{ view.getRenderAttributeString( `link_${index}` ) }}}>
							{{{title}}}
						</a>
					<# } else { #>
						{{{title}}}
					<# } #>
				</li>
			<# } ); #>
		</{{{ html_tag[ settings.marker_type ] }}}>
		<?php
	}

}
